GUI Program for Transformer Performance and Analysis
Download EE340GuiFiles
This self-extracting installation file contains two graphical user interface programs for transformer and induction motor analyses. After downloading this file double-click onthe file to install the programs in a directory of your choice. Use MATLAB Path Browser to add this directory to the MATLAB path.

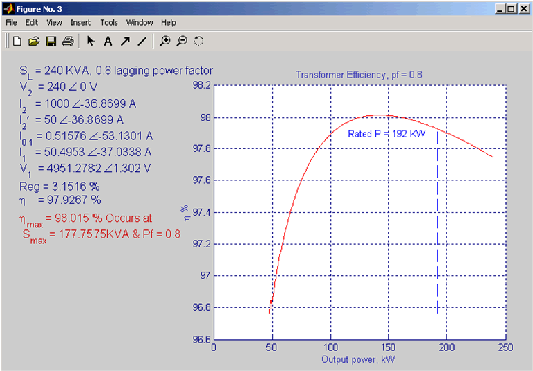

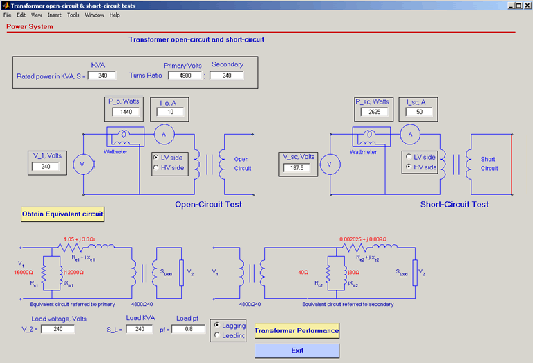

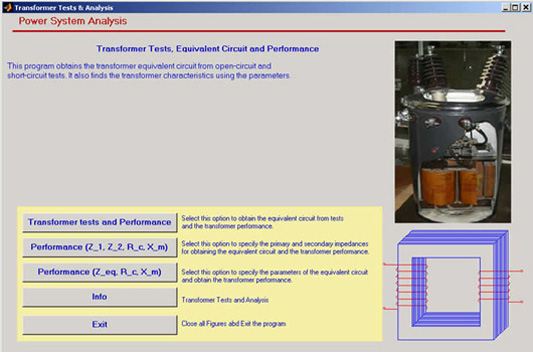

The transformer program obtains the transformer equivalent circuit from open-circuit and short-circuit tests. It also finds the transformer performance characteristics using the transformer parameters. To run the transformer tests and performance analysis at the MATLAB prompt type:
>> Transformer
|
|
|
